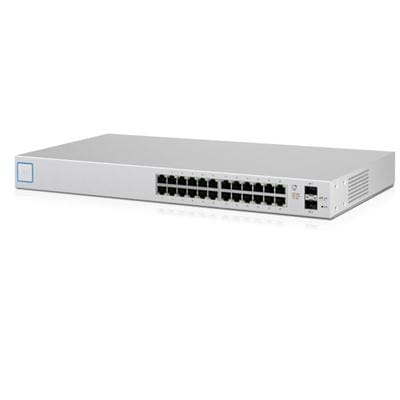

Ubiquiti Networks US-24 is a 24-port, Layer 2 switch with a silent, fanless cooling system.
Powerful Enterprise Switch Models
The UniFi® Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Non-Blocking Throughput
For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
Seamless Integration
The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations – all controlled from a single interface.
Product Type: Ethernet Switch
US-24 – Mechanical | |
---|---|
Dimensions | 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72″) |
Weight | Without Mount: 2.70 kg (5.95 lb)
With Mount: 2.79 kg (6.15 lb) |
Enclosure Material | SGCC Steel |
Hardware | |
Total Non-Blocking Throughput | 26 Gbps |
Switching Capacity | 52 Gbps |
Forwarding Rate | 38.69 Mpps |
Max. Power Consumption | 25W |
Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
Power Supply | AC/DC, Internal, 36W |
Networking Interfaces | (24) 10/100/1000 Mbps Ethernet RJ45 Ports
(2) 1 Gbps SFP Ports |
Management Interface | Ethernet In-Band |
Modes | SMB Layer 2 Gigabit Ethernet Switch |
ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
Operating Temperature | -5 to 40° C (23 to 104° F) |
Operating Humidity | 10 – 90% Noncondensing |
Certifications | CE, FCC, IC |
LEDs | |
System | (1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
Ethernet | Green: 1G, Amber: 10/100 Mbps |
SFP | Green: 1G |
